500W 24V BLDC Motor NEMA23 57mm DC Brushless Motor 0.3N.M Max Torque

Name: 500W 24V BLDC Motor NEMA23 57mm DC Brushless Motor 03NM Max Torque
Brand: Casun
Price: 18 USD

Quality 500W 24V BLDC Motor NEMA23 57mm DC Brushless Motor 0.3N.M Max Torque for sale

Brand Name : Casun

Model Number : 57BL52R63-2460-256

Certification : CE,ROSH,ISO

Place of Origin : CHINA

MOQ : 1PC

Price : $18-$28

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 40000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:36x29x14cm

Speed(rpm) : 5000RPM

Torque : 0.3N.m

Voltage(v) : 24V

Customized : The motor can be designed &manufactured with customized request.

Contact Now

BLDC NEMA23 57mm Brushless motor DC 24V 500w brushless dc motor Max torque 0.3N.m

Features:

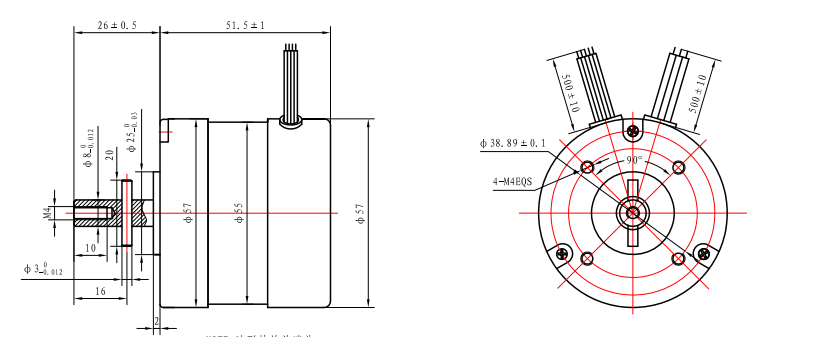

Dimensions

Motor Specifications

Fram Size	57 mm
Rated Current	4 A
MaTorque	0.3N.m
Resistance	6000rpm
Inductance	6500rpm
Rate Power	63 W
Rate Voltage	24 V
Number of poles	4
Insulation Class	Class B

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Please click the "Get a quote" button below to tell us your requirements.
